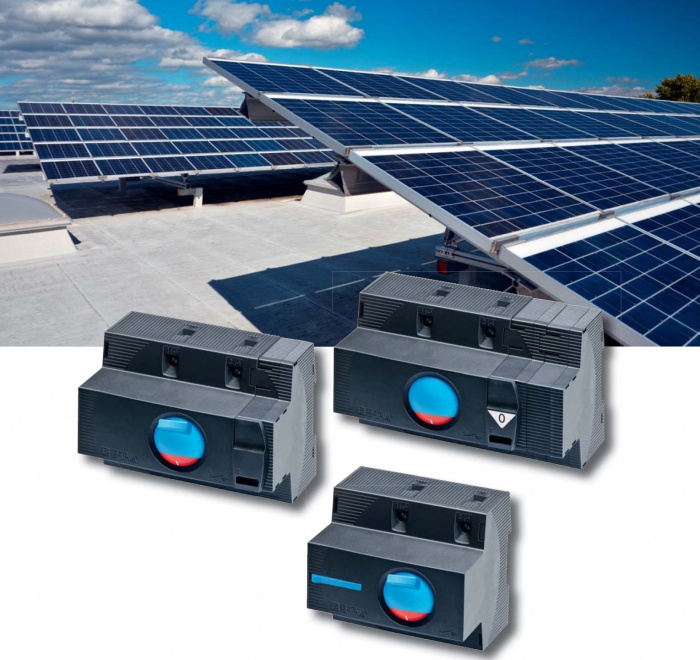

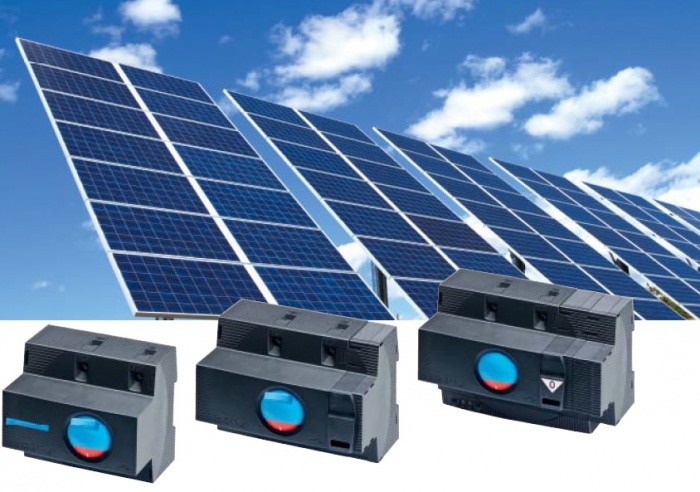

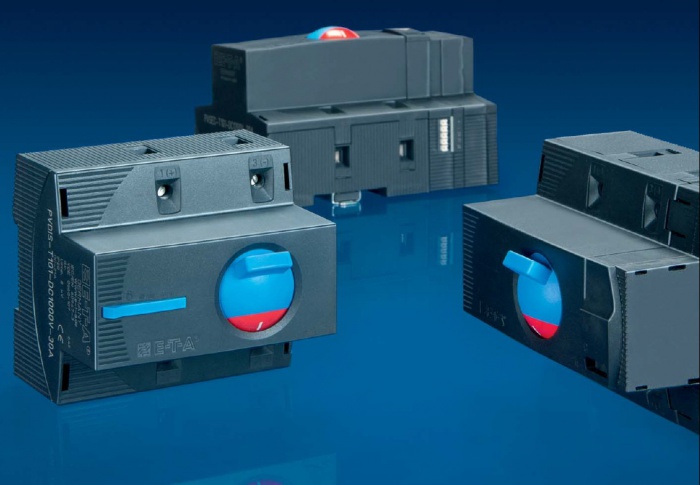

DC-Disconnect PVDIS-...
The E-T-A DC-Disconnect PVDIS-... is a 2-pole track mountable disconnector that has especially been designed for photovoltaics, meeting the requirements of IEC/EN 60947-3 for DC 1000 V and 30 A.
DC-Disconnect PVDIS-…
The E-T-A DC-Disconnect PVDIS-... is a 2-pole track mountable disconnector that has especially been designed for photovoltaics, meeting the requirements of IEC/EN 60947-3 for DC 1000 V and 30 A.
Features
· Designed explicitly for the photovoltaics market and its requirements.
· Suitable for the entire voltage and current range through hybrid technology (electromechanics + electronics)
. Reliable 2-pole disconnection up to operating voltages of max. DC 1000 V and operating currents of max. 30 A
. One product version and a low variety of options allow minimal stock-keeping and ensure low logistic complexity
. Low switching energy ensures long endurance and a low-wear contact system
· Compact dimensions to DIN 43880 (l x w x h): 99 x 90 x 92.5 mm
· Ease of installation and termination through direct rail mounting with 16 mm² screw terminals for PV+ and PV-
· Maintenance-free, reliable and rugged design
· Lockable in OFF condition
· Ambient temperature -30 °C…+60 °C (-22 °F to +140 °F)
· Integral Fail-Safe function
Typical applications
The DC disconnect requested by standards [DIN VDE 0100-712 (VDE 0100-712) Low-voltage electrical installations - Part 7-712: Requirements for special installations or locations - Photovoltaic (PV) power systems (IEC 64/1736/CD:2010)] was designed for rail mounting and can therefore e.g. be installed in distribution boxes.
Relevant standards
|
Standard |
rated voltage |
current rating range |
|
IEC/EN 60947-3 |
DC 1000 V |
up to 30 A |
DATASHEET DOWNLOAD:
datasheet
