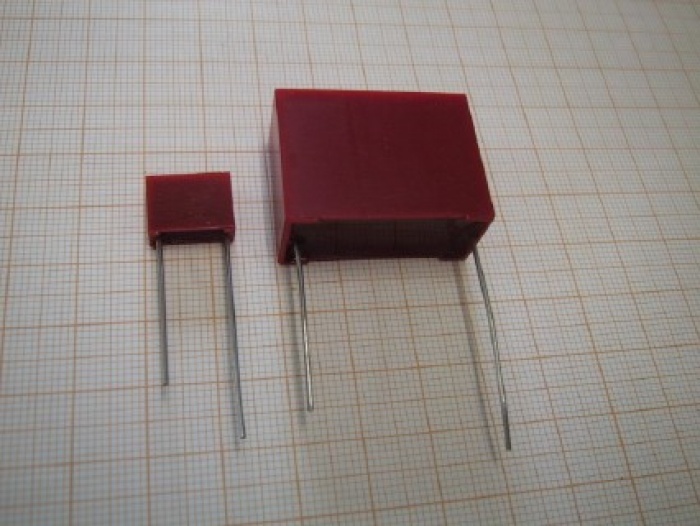

MKP Metallized Polycarbonate Capacitors
Metallized Polycarbonate Capacitors Series MKP ,AC and DC Voltage, High Effective Current for Proffesional Applications
Main Characteristics
Dry film-foil based technology
Rated Voltages: 63 VDC to 630 VDC
Climatic category: 40/100/56
Tolerances ±10%
and on request: ±5%, ±2%, ±1%
Class 1 compliant
Design
Metallized Polycarbonate Film
Polyester exterior wrap
Axial tinned-copper leads
-insulated leads available on request
Resin-epoxy end-seal (UL-V0)
