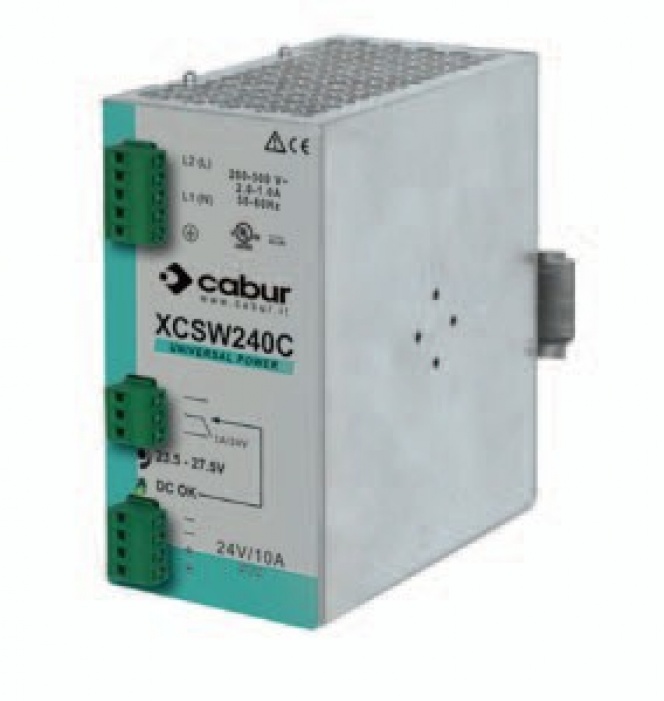

CSW240C
AC/DC DIN Rail Power Supply, 1 or 2-Phase AC Input 185 - 550 V AC Output Power 240W, Output Voltage 12-15V, 24V or 48 V DC, Redundancy possible
1 or 2-phase switching power supply, 230/400/500 Vac output power 240 W
Both single-phase and two-phase input voltages 185...550 Vac
High reliability and immunity against over voltage due to failures on AC line
Short circuit, overload, over temperature, input and ouput overvoltage protections
High outrush current to guarantee downstream overcurrent protections selectivity and to start-up heavy loads
High efficiency and low dissipated power
Suitable for applications in SELV and PELV circuits
Redundant versions available
EMC Standards EN61000-6-2, EN61000-6-4, EN61000-4-2, EN61000-4-3,
EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11
MTBF @ 25°C @ nominal ratings >500'000 h acc. to SN 29500 /
>150'000 h acc. to MIL Std. HDBK 217F
Fotogalerie
For more information you can contact us.
