Ratioplast pre-assembled D-Sub connectors male/female with emitter and/or receiver diodes

Pre-assembled D-Sub connectors male/female with emitter and/or receiver diodes

D-Sub Male Connectors

Datasheet

Fiber optic D-Sub male connectors

We are able to supply pre-assembled D-Sub female connectors with suitable emitter and receiver diodes in addition to our product range of emitter and receiver devices with standard ports.

The following list up presents a brief overview of suitable passive D-Sub male connectors.

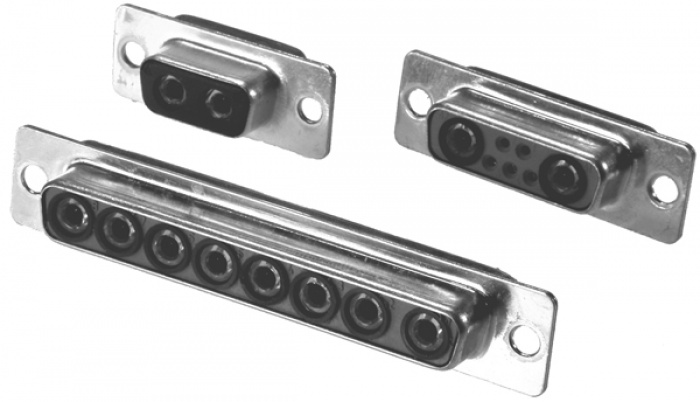

Design types	Description
01	D-Sub male connector can be equipped with 2 fiber end sleeves 905SDSTG01001
2B	D-Sub male connector can be equipped with 3 fiber end sleeves 905SDSTG2B001
2C	D-Sub male connector can be equipped with 2 fiber end sleeves and 5 electrical contacts 905SDSTG2C001
3E	D-Sub male connector can be equipped with 4 fiber end sleeves, with 5 electrical contacts 905SDSTG3E001
3F	D-Sub male connector can be equipped with 5 fiber end sleeves 905SDSTG3F002
4K	D-Sub male connector can be equipped with 8 fiber end sleeves 905SDSTG4K001
4L	D-Sub male connector can be equipped with 6 fiber end sleeves, with 7 electrical contacts 905SDSTG4L001
4M	D-Sub male connector can be equipped with 5 fiber end sleeves, with 12 electrical contacts 905SDSTG4M001

Related products

D-Sub Female Connectors

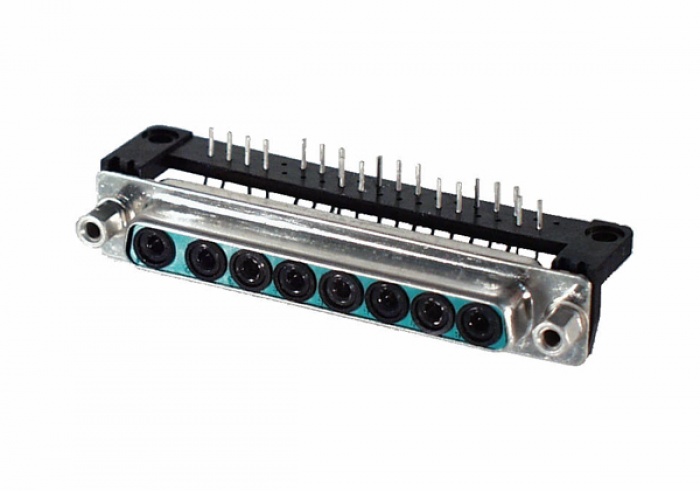

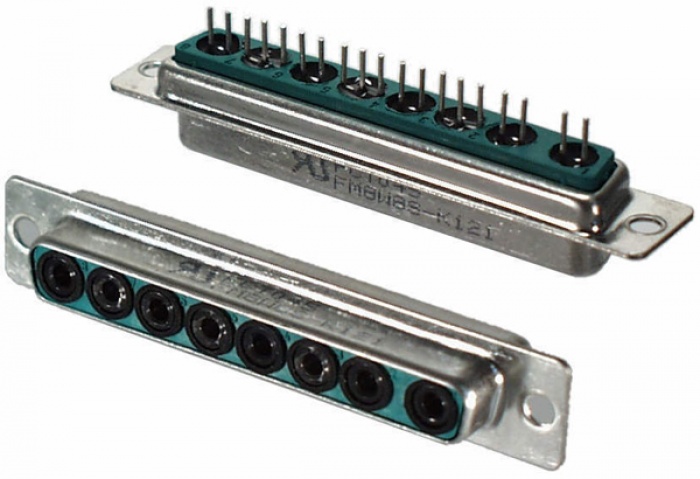

We are able to supply pre-assembled D-Sub female connectors with suitable emitter and receiver diodes in addition to our product range of emitter and receiver devices with standard ports. These components are especially suitable for applications with with standard 1mm plastic fiber optical cable. Used in conjunction with suitable D-Sub male connectors (please see our product site Fiber optic D-Sub male connectors) and D-Sub female connectors it is possible to build a multi channel fiber optic system. Pre-assembled with fast 650nm/660nm diodes (maximum data rate of 5MBit/s) with integrated TIA and a TTL compatible "open collector" output, the devices are a good alternative solution in data transmission systems with fiber optical cables. The following list up presents a brief overview of available D-Sub housings and the fitting emitter and receiver diodes. Please inquire the suppliable different variants as not every diode type and D-Sub housing can be combined! Our R&D and our sales department are pleased to be able to advise you concerning individual active D-Sub device solutions.   Design types Description 01         D-Sub female plug can be equipped with 2 optical devices (emitter/receiver 650nm/660nm) Device combinations and ordering information on request! 2B   D-Sub female plug can be equipped with 3 optical devices (emitter/receiver 650nm/660nm) Device combinations and ordering information on request! 2C                  D-Sub female plug can be equipped with 2 optical devices (emitter/receiver 650nm/660nm) and 5 electrical contacts Device combinations and ordering information on request! 3E        D-Sub female plug can be equipped with 5 optical devices (emitter/receiver 650nm/660nm) Device combinations and ordering information on request! 3F                      D-Sub female plug can be equipped with 4 optical devices (emitter/receiver 650nm/660nm) and 5 electrical contacts Device combinations and ordering information on request! 4K       D-Sub female plug can be equipped with 8 optical devices (emitter/receiver 650nm/660nm) Device combinations and ordering information on request! 4L                D-Sub female plug can be equipped with 6 optical devices (emitter/receiver 650nm/660nm) and 7 electrical contacts Device combinations and ordering information on request! 4M               D-Sub female plug can be equipped with 5 optical devices (emitter/receiver 650nm/660nm) and 12 electrical contacts Device combinations and ordering information on request! Related products D-Sub male connectors Fiber optic D-Sub male connectors Detail 905EMPINDI104 Optical receiver PIN photo diode DIN41626 male insert metal receptacle Detail D-Sub Pre-assembled D-Sub connectors male/female with emitter and/or receiver diodes Detail
