DC/DC měniče VITEC 1W až 60W

DC/DC měniče pro "thru hole" a SMD montáž ve standardních průmyslových pouzdrech

Vitec Power GmbH

DC/DC Converters and LED Power for "thru hole" and SMD Mounting, Industrial Standard Case, 0,5W ......... 60W

Product Overview

Product Matrix Vitec dc conversion

Vitec dc conversion is offering a wide range of small and medium PCB mounted DC/DC converters and DC/DC devices from 1 to 60W.

Covering today’s demands in electronic applications Vitec is providing galvanic isolated converters with 1 to 3 outputs in through-hole as well as SMD versions. Input ranges from +/-10% up to ultra wide 4:1 versions and regulated or unregulated types are already representing a very complete standard portfolio. In addition to that we are able to provide custom-specific solution matching your requirements and expectations. Our products meet several industry specific standards as for example medical applications with higher isolations or constant current demands for LED devices.

+/- 10% Input Range

VSE Series
- Single Output
- Transfer Molded SMD Package
- Efficiency up to 78%
- Cost Effective
1 Watt

1 kVdc

SMD 14 Package
12.7 x 11.0 x 7.0
VSA Series
- Single, Dual Output
- Transfer Molded SMD Package
- Efficiency up to 78%
- Cost Effective
1 Watt

1 kVdc

SMD 18 Package
15.24 x 11.0 x 6.5
VSV Series (1W)
- Single, Dual Output
- Transfer Molded SMD Package
- Efficiency up to 82%
- Cost Effective
1 Watt

1 kVdc

SMD 22 Package
15.24 x 11.0 x 7.3
or
15.24 x 11.0 x 8.5
VME Series
- Single, Dual Output
- Ultra Miniature Package
- Efficiency up to 80%
- Cost Effective
1 Watt

1 - 3 kVdc

SIL 4 (S)
11.68 x 6.00 x 10.16
DIL 8 (D)
12.70 x 10.16 x 6.85
VMK Series
- Dual Output
- Ultra Miniature Package
- High Performance
- Efficiency Up to 82 %
1 Watt

3 kVdc

SIL 6
16.55 x 5.95 x 7.55

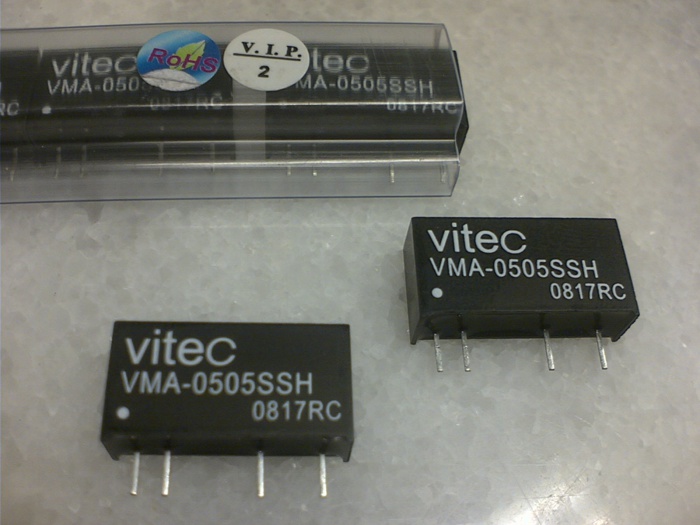

VMA Series
- Single, Dual Output
- Low Ripple and Noise
- Cost Effective
- Efficiency Up to 80 %
1 Watt

1 - 6 kVdc

SIL 7 (S)
19.50 x 6.0 x 9.50
DIL 14 (D)
20.32 x 10.16 x 6.85
VMC Series (1W)
- Semiregulated Single & Dual Output
- Low Ripple and Noise
- Cost Effective
- Efficiency Up to 89 %
1 Watt

1 - 3 kVdc

SIL 7
19.5 x 6.0 x 10.0
VMI Series (1W)
- Single and Dual Output
- 100% Safety Production Test
- 2.5mm creepage & clearance distance
- 6 kVdc I/O Isolation
1 Watt

6 kVdc

SIL7
19.50 x 9.80 x 12.00
VMD Series
- Dual Isolated Output
- Ultra Miniature Package
- Low Ripple and Noise
- Efficiency Up to 80 %
1 Watt

1 kVdc

SIL 7 (S)
19.50 x 6.00 x 9.50
DIL 14 (D)
20.32 x 10.16 x 6.85
VMF Series
- Single Regulated Output
- Low Ripple and Noise
- Cost Effective
- Efficiency Up to 65 %
1 Watt

1 - 3 kVdc

SIL 7 (S)
19.50 x 6.0 x 9.50
DIL 14 (D)
20.32 x 10.16 x 6.85
VMB Series (1.5W)
- Single Output
- Continuous Short Circuit Protection
- Efficiency up to 68%
- Cost Effective
1.5 Watt

1 - 3 kVdc

SIL 12
32.00 x 14.00 x 8.00
VSV Series (2W)
- Single, Dual Output
- Transfer Molded SMD Package
- Efficiency up to 82%
- Cost Effective
2 Watt

3 kVdc

SMD 22 Package
15.24 x 11.0 x 8.5
VML Series
- Single Output
- Ultra Miniature Package
- Efficiency up to 80%
- Low Ripple and Noise
2 Watt

1 - 3 kVdc

SIL 4
11.68 x 7.20 x 10.15
VMH Series
- Single, Dual Output
- Low Ripple and Noise
- Cost Effective
- Efficiency Up to 82%
2 Watt

1 - 6 kVdc

SIL 7 (S)
19.50 x 6.00 x 9.50
DIL 14 (D)
20.32 x 10.16 x 6.85
VMC Series (2W)
- Semiregulated Single & Dual Output
- Low Ripple and Noise
- Cost Effective
- Efficiency Up to 89 %
2 Watt

1 - 3 kVdc

SIL 7
19.5 x 7.2 x 10.0
VMB Series (2W)
- Single Output
- Continuous Short Circuit Protection
- Efficiency up to 69%
- Cost Effective
2 Watt

1 - 5.2 kVdc

SIL 12
32.00 x 14.00 x 8.00
VMR Series (2W)
- Single, Dual Output
- Efficiency Up to 70%
- Regulated Output Voltage
- Continuous Short Circuit Protection
2 Watt

1 - 6 kVdc

DIL 24
31.75 x 20.32 x 10.16
VMC Series (3W)
- Semiregulated Single & Dual Output
- Low Ripple and Noise
- Cost Effective
- Efficiency Up to 90%
3 Watt

1 - 3 kVdc

SIL 7
19.5 x 7.2 x 10.0
VMB Series (3W)
- Single Output
- Continuous Short Circuit Protection
- Efficiency up to 71%
- Cost Effective
3 Watt

1 - 5.2 kVdc

SIL 12
32.00 x 14.00 x 8.00
VMR Series (3W)
- Single, Dual Output
- Efficiency Up to 70%
- Regulated Output Voltage
- Continuous Short Circuit Protection
3 Watt

1 - 6 kVdc

DIL 24
31.75 x 20.32 x 10.16
VMI Series (3.5W)
- Single Output
- +/-20% Input Range
- 8mm creepage & clearance distance
- 5 kVdc I/O Isolation
3.5 Watt

5 kVdc

DIL 24
31.75 x 20.32 x 10.16

2:1 Wide Input Range

VMG Series (1W)
- Single, Dual Output
- Ultra Miniature Package
- Continuous Short Circuit Protection
- Remote on/off Control Optional
1 Watt

1 â€“ 3 kVdc

SIL 8 (S)
21.85 x 9.20 x 10.60
DIL 16 (D)
23.40 x 14.0 x 10.16
VMG Series (2W)
- Single, Dual Output
- Ultra Miniature Package
- Continuous Short Circuit Protection
- Remote on/off Control Optional
2 Watt

1 - 3 kVdc

SIL 8 (S)
21.85 x 9.20 x 10.60
DIL 16 (D)
23.40 x 14.0 x 10.16
VT02 Series
- Single, Dual Output
- Efficiency Up to 84%
- UL60950-1 certified
- EMI EN 55022 Level B
2 Watt

1.5 kVdc

SIL 8
21.8 x 9.2 x 11.1
VT02B Series
- Single, Dual Output
- SMD or DIL Package
- Efficiency up to 84%
- UL60950-1 certified
2 Watt

1 â€“ 3 kVdc

DIL 14
18.9 x 12.8 x 8.4
SMD 14 Package
18.9 x 12.8 x 8.4
VMS Series (2W)
- Single, Dual Output
- High Reliability
- Full SMD Technology
- Continuous Short Circuit Protection
2 Watt

1.5 - 3.5 kVdc

DIL 24
31.75 x 20.32 x 10.16
VMU Series (2W)
- Single, Dual Output
- Efficiency Up to 80%
- Regulated Output Voltage
- Continuous Short Circuit Protection
2 Watt

1.5 â€“ 3.5 kVdc

DIL 24
31.75 x 20.32 x 10.16
VMG Series (3W)
- Single, Dual Output
- Ultra Miniature Package
- Continuous Short Circuit Protection
- Remote on/off Control Optional
3 Watt

1 kVdc

SIL 8
21.85 x 9.20 x 10.60
VT03C Series
- Single, Dual Output
- Short Circuit Protection
- Extended Temperature Range
- UL60950-1 certified
3 Watt

1.5 kVdc

SIL 8
21.8 x 9.2 x 11.1
VT03B Series
- Single, Dual Output
- SMD or DIL Package
- Efficiency up to 84%
- UL60950-1 certified
3 Watt

1 â€“ 3 kVdc

DIL 14
18.9 x 12.8 x 8.4
SMD 14 Package
18.9 x 12.8 x 8.4
VMS Series (3W)
- Single, Dual Output
- High Reliability
- Full SMD Technology
- Continuous Short Circuit Protection
3 Watt

1.5 â€“ 3.5 kVdc

DIL 24
31.75 x 20.32 x 10.16
VMU Series (3W)
- Single, Dual Output
- Efficiency Up to 82%
- Regulated Output Voltage
- Continuous Short Circuit Protection
3 Watt

1.5 â€“ 3.5 kVdc

DIL 24
31.75 x 20.32 x 10.16
VT03 Series
- Single, Dual Output
- UL60950-1 certified
- EMI EN 55022 Level A
- Extended Temperature Range
3 Watt

1.5 kVdc

DIL 24
31.8 x 20.3 x 10.2
SMD 24 Package
32.0 x 25.4 x 11.2
VMU Series (4W)
- Single, Dual Output
- Efficiency Up to 83%
- Regulated Output Voltage
- Continuous Short Circuit Protection
4 Watt

1.5 â€“ 3.5 kVdc

DIL 24
31.75 x 20.32 x 10.16
VMU Series (5W)
- Single, Dual Output
- Efficiency Up to 84%
- Regulated Output Voltage
- Continuous Short Circuit Protection
5 Watt

1.5 â€“ 3.5 kVdc

DIL 24
31.75 x 20.32 x 10.16
VT05 Series
- Single, Dual Output
- UL60950-1 certified
- EMI EN 55022 Level A
- Extended Temperature Range
5 Watt

1.5 kVdc

DIL 24
31.8 x 20.3 x 10.2
SMD 24 Package
32.0 x 25.4 x 11.2
VMU Series (6W)
- Single, Dual Output
- Efficiency Up to 84%
- Regulated Output Voltage
- Continuous Short Circuit Protection
6 Watt

1.5 â€“ 3.5 kVdc

DIL 24
31.75 x 20.32 x 10.16
VMU Series (8W)
- Single, Dual Output
- Efficiency Up to 85%
- Regulated Output Voltage>
- Continuous Short Circuit Protection
8 Watt

1.5 kVdc

DIL 24
31.75 x 20.32 x 10.16

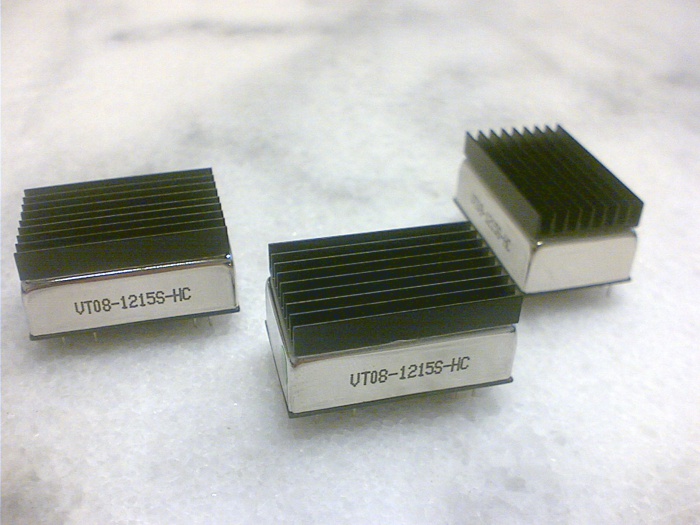

VT08 Series
- Single, Dual Output
- UL60950-1 certified
- EMI EN 55022 Level A
- Remote On/Off
8 Watt

1.5 kVdc

DIL 24
31.8 x 20.3 x 10.2
SMD 24 Package
32.0 x 25.4 x 11.2
VMU Series (10W)
- Single, Dual Output
- Efficiency up to 90%
- Regulated Output Voltage
- Continuous Short Circuit Protection
10 Watt

1.5 kVdc

DIL 24
31.75 x 20.32 x 10.16
VM10 Series
- Single, Dual Output
- Efficiency up to 87%
- Low Ripple and Noise
- Optional Remote On/Off
10 Watt

1.5 kVdc

2 x 1 inches
50.8 x 25.4 x 10.2
VT10 Series
- Single, Dual Output
- UL60950-1 certified
- EMI EN 55022 Level A
- Remote On/Off
10 Watt

1.5 kVdc

2 x 1 inches
50.8 x 25.4 x 10.2
VMU Series (12W)
- Single, Dual Output
- Efficiency up to 91%
- Remote On/Off
- Continuous Short Circuit Protection
12 Watt

1.5 kVdc

DIL 24
31.75 x 20.32 x 10.16
VT12 Series
- Single, Dual Output
- Efficiency up to 89%
- EMI EN 55022 Level A
- Remote On/Off
12 Watt

1.5 kVdc

DIL 24
31.8 x 20.3 x 10.2
SMD 24 Package
32.0 x 25.4 x 11.2
VT15B Series
- Single, Dual Output
- Efficiency up to 91%
- EMI EN 55022 Level A
- Remote On/Off
15 Watt

1.5 kVdc

DIL 24
31.8 x 20.3 x 10.2
VM15Q Series
- Single and Dual Output
- Continuous Short Circuit Protection
- Efficiency up to 87%
- Cost Effective
15 Watt

1.5 kVdc

1 x 1 inches
25.4 x 25.4 x 10.2
VT15Q Series
- Single and Dual Output
- Continuous Short Circuit Protection
- Efficiency up to 89%
- Heat Sink Option
15 Watt

1.5 kVdc

1 x 1 inches
25.4 x 25.4 x 9.9
VM15 Series
- Single, Dual Output
- Efficiency up to 87%
- Low Ripple and Noise
- Cost Effective
15 Watt

1.5 kVdc

2 x 1 inches
50.8 x 25.4 x 10.2
VT15 Series
- Single, Dual Output
- UL60950-1 certified
- EMI EN 55022 Level A
- Remote On/Off
15 Watt

1.5 kVdc

2 x 1 inches
50.8 x 25.4 x 10.2
VM15A Series
- Single, Dual Output
- Efficiency up to 87%
- Low Ripple and Noise
- Cost Effective
15 Watt

1.5 kVdc

2 x 2 inches
50.8 x 50.8 x 10.2
VM20Q Series
- Single and Dual Output
- Adjustable Output Voltage
- Efficiency up to 90%
- Cost Effective
20 Watt

1.5 kVdc

1 x 1 inches
25.4 x 25.4 x 10.2
VT20Q Series
- Single and Dual Output
- Continuous Short Circuit Protection
- Efficiency up to 91%
- Heat Sink Option
20 Watt

1.5 kVdc

1 x 1 inches
25.4 x 25.4 x 9.9
VM20 Series
- Single, Dual Output
- Efficiency up to 93%
- Low Ripple and Noise
- Cost Effective
20 Watt

1.5 kVdc

2 x 1 inches
50.8 x 25.4 x 10.2
VT20C Series
- Single, Dual Output
- Efficiency up to 89%
- EMI EN 55022 Level A
- Remote On/Off
20 Watt

1.5 kVdc

2 x 1 inches
50.8 x 25.4 x 10.2
VT20 Series
- Single, Dual, Triple Output
- Efficiency up to 88%
- EMI EN 55022 Level A
- Remote On/Off
20 Watt

1.5 kVdc

2 x 1.6 inches
50.8 x 40.6 x 10.2
VM20A Series
- Single, Dual Output
- Efficiency up to 87%
- Low Ripple and Noise
- Cost Effective
20 Watt

1.5 kVdc

2 x 2 inches
50.8 x 50.8 x 10.2
VM25A Series
- Single, Dual Output
- Efficiency up to 87%
- Low Ripple and Noise
- Cost Effective
25 Watt

1.5 kVdc

2 x 2 inches
50.8 x 50.8 x 10.2
VM30C Series
- Single, Dual Output
- Efficiency up to 92%
- Low Ripple and Noise
- Cost Effective
30 Watt

1.5 kVdc

2 x 1 inches
50.8 x 25.4 x 10.2
VT30C Series
- Single, Dual Output
- Efficiency up to 91%
- EMI EN 55022 Level A
- +/- 10% Trim Range
30 Watt

1.5 kVdc

2 x 1 inches
50.8 x 25.4 x 10.2
VM30 Series
- Single, Dual Output
- Efficiency up to 87%
- Low Ripple and Noise
- Cost Effective
30 Watt

1.5 kVdc

2 x 1.6 inches
50.8 x 40.6 x 10.2
VT30 Series
- Single, Dual Output
- Efficiency up to 90%
- EMI EN 55022 Level A
- Remote On/Off
30 Watt

1.5 kVdc

2 x 1.6 inches
50.8 x 40.6 x 10.2
VM30A Series
- Single, Dual Output
- Efficiency up to 88%
- Low Ripple and Noise
- Cost Effective
30 Watt

1.5 kVdc

2 x 2 inches
50.8 x 50.8 x 10.2
VT40 Series
- Single, Dual, Triple Output
- Efficiency up to 90%
- EMI EN 55022 Level A
- Remote On/Off
40 Watt

1.5 kVdc

2 x 2 inches
50.8 x 50.8 x 10.2
VM60 Series
- Single Output
- Efficiency up to 91%
- EMI EN 55022 Level A
- Remote On/Off
60 Watt

1.5 kVdc

2 x 2 inches
50.8 x 50.8 x 10.2
VT60 Series
- Single Output
- Efficiency up to 90%
- EMI EN 55022 Level A
- Remote On/Off
60 Watt

1.5 kVdc

2 x 2 inches
50.8 x 50.8 x 10.2

4:1 Ultra Wide Input Range

VMY Series (2W)
- Single, Dual Output
- Ultrawide Input Range
- Efficiency up to 80%
- High Reliability
2 Watt

1.5 kVdc

SIL 8
21.8 x 9.2 x 10.6
VMV Series (2W)
- Single, Dual Output
- Ultrawide Input Range
- Efficiency up to 85%
- High Reliability
2 Watt

1.5 â€“ 3.5 kVdc

SIL 9
26.0 x 9.3 x 12.50
VTW02B Series
- Single, Dual Output
- SMD or DIL Package
- Efficiency up to 83%
- UL60950-1 certified
2 Watt

1 â€“ 3 kVdc

DIL 14
18.9 x 12.8 x 8.4
SMD 14 Package
18.9 x 12.8 x 8.4
VMW Series (2W)
- Single, Dual Output
- Ultrawide Input Range
- Efficiency up to 80%
- High Reliability
2 Watt

1.5 â€“ 3.5 kVdc

DIL 24
31.75 x 20.32 x 10.16
VMY Series (3W)
- Single, Dual Output
- Ultrawide Input Range
- Efficiency up to 80%
- High Reliability
3 Watt

1.5 kVdc

SIL 8
21.8 x 9.2 x 10.6
VMV Series (3W)
- Single, Dual Output
- Ultrawide Input Range
- Efficiency up to 85%
- High Reliability
3 Watt

1.5 â€“ 3.5 kVdc

SIL 9
26.0 x 9.3 x 12.50
VTW03C Series
- Single, Dual Output
- Short Circuit Protection
- Extended Temperature Range
- UL60950 certified
3 Watt

1.5 - 3 kVdc

SIL 8
21.8 x 9.2 x 11.1
VTW03B Series
- Single, Dual Output
- SMD or DIL Package
- Efficiency up to 83%
- UL60950-1 certified
3 Watt

1 â€“ 3 kVdc

DIL 14
18.9 x 12.8 x 8.4
SMD 14 Package
18.9 x 12.8 x 8.4
VMW Series (3W)
- Single, Dual Output
- Ultrawide Input Range
- Efficiency up to 80%
- High Reliability
3 Watt

1.5 â€“ 3.5 kVdc

DIL 24
31.75 x 20.32 x 10.16
VMW Series (4W)
- Single, Dual Output
- Ultrawide Input Range
- Efficiency up to 84%
- High Reliability
4 Watt

1.5 â€“ 3.5 kVdc

DIL 24
31.75 x 20.32 x 10.16
VMW Series (5W)
- Single, Dual Output
- Ultrawide Input Range
- Efficiency up to 82%
- High Reliability
5 Watt

1.5 â€“ 3.5 kVdc

DIL 24
31.75 x 20.32 x 10.16
VTW05 Series
- Single, Dual Output
- UL60950-1 certified
- EMI EN 55022 Level A
- Extended Temperature Range
5 Watt

1.5 kVdc

DIL 24
31.8 x 20.3 x 10.2
SMD 24 Package
32.0 x 25.4 x 11.2
VMW Series (6W)
- Single, Dual Output
- Ultrawide Input Range
- Efficiency up to 84%
- High Reliability
6 Watt

1.5 â€“ 3.5 kVdc

DIL 24
31.75 x 20.32 x 10.16
VMW Series (8W)
- Single, Dual Output
- Efficiency up to 90%
- Remote On/Off
- Continuous Short Circuit Protection
8 Watt

1.5 kVdc

DIL 24
31.75 x 20.32 x 10.16
VTW08 Series
- Single, Dual Output
- UL60950-1 certified
- EMI EN 55022 Level A
- 110Vdc Railway Input
8 Watt

1.5 kVdc

DIL 24
31.8 x 20.3 x 10.2
SMD 24 Package
32.0 x 25.4 x 11.2
VMW Series (10W)
- Single, Dual Output
- Efficiency up to 90%
- Remote On/Off
- Continuous Short Circuit Protection
10 Watt

1.5 kVdc

DIL 24
31.75 x 20.32 x 10.16
VM10W Series
- Single, Dual Output
- Efficiency up to 87%
- Low Ripple and Noise
- Optional Remote On/Off
10 Watt

1.5 kVdc

2 x 1 inches
50.8 x 25.4 x 10.2
VTW10 Series
- Single, Dual Output
- UL60950-1 certified
- EMI EN 55022 Level A
- Remote On/Off
10 Watt

1.5 kVdc

2 x 1 inches
50.8 x 25.4 x 10.2
VMW Series (12W)
- Single, Dual Output
- Efficiency up to 90%
- Remote On/Off
- Continuous Short Circuit Protection
12 Watt

1.5 kVdc

DIL 24
31.75 x 20.32 x 10.16
VTW12 Series
- Single, Dual Output
- Efficiency up to 89%
- EMI EN 55022 Level A
- Remote On/Off
12 Watt

1.5 kVdc

DIL 24
31.8 x 20.3 x 10.2
SMD 24 Package
32.0 x 25.4 x 11.2
VTW15B Series
- Single, Dual Output
- Efficiency up to 90%
- EMI EN 55022 Level A
- Remote On/Off
15 Watt

1.5 kVdc

DIL 24
31.8 x 20.3 x 10.2
VM15QW Series
- Single and Dual Output
- Continuous Short Circuit Protection
- Efficiency up to 89%
- Cost Effective
15 Watt

1.5 kVdc

1 x 1 inches
25.4 x 25.4 x 10.2
VTW15Q Series
- Single and Dual Output
- Continuous Short Circuit Protection
- Efficiency up to 88%
- Heat Sink Option
15 Watt

1.5 kVdc

1 x 1 inches
25.4 x 25.4 x 9.9
VM15W Series
- Single, Dual Output
- Efficiency up to 87%
- Low Ripple and Noise
- Cost Effective
15 Watt

1.5 kVdc

2 x 1 inches
50.8 x 25.4 x 10.2
VTW15 Series
- Single, Dual Output
- UL60950-1 certified
- EMI EN 55022 Level A
- Remote On/Off
15 Watt

1.5 kVdc

2 x 1 inches
50.8 x 25.4 x 10.2
VM20QW Series
- Single and Dual Output
- Adjustable Output Voltage
- Efficiency up to 89%
- Cost Effective
20 Watt

1.5 kVdc

1 x 1 inches
25.4 x 25.4 x 10.2
VTW20Q Series
- Single and Dual Output
- Continuous Short Circuit Protection
- Efficiency up to 90%
- Heat Sink Option
20 Watt

1.5 kVdc

1 x 1 inches
25.4 x 25.4 x 9.9
VM20W Series
- Single, Dual Output
- Efficiency up to 91%
- Low Ripple and Noise
- Cost Effective
20 Watt

1.5 kVdc

2 x 1 inches
50.8 x 25.4 x 10.2
VTW20C Series
- Single, Dual Output
- Efficiency up to 89%
- EMI EN 55022 Level A
- Remote On/Off
20 Watt

1.5 kVdc

2 x 1 inches
50.8 x 25.4 x 10.2
VTW20 Series
- Single, Dual Output
- Efficiency up to 86%
- EMI EN 55022 Level A
- Remote On/Off
20 Watt

1.5 kVdc

2 x 1.6 inches
50.8 x 40.6 x 10.2
VM30CW Series
- Single, Dual & Triple Output
- Efficiency up to 91%
- Low Ripple and Noise
- Cost Effective
30 Watt

1.5 kVdc

2 x 1 inches
50.8 x 25.4 x 10.2
VTW30C Series
- Single, Dual & Triple Output
- Efficiency up to 91%
- EMI EN 55022 Level A
- Remote On/Off
30 Watt

1.5 kVdc

2 x 1 inches
50.8 x 25.4 x 10.2
VTW30 Series
- Single, Dual Output
- Efficiency up to 90%
- EMI EN 55022 Level A
- Remote On/Off
30 Watt

1.5 kVdc

2 x 1.6 inches
50.8 x 40.6 x 10.2
VM40W Series
- Single, Dual Output
- Efficiency up to 88%
- Low Ripple and Noise
- Cost Effective
40 Watt

1.5 kVdc

2 x 2 inches
50.8 x 50.8 x 10.2
VTW40 Series
- Single, Dual Output
- Efficiency up to 90%
- EMI EN 55022 Level A
- Remote On/Off
40 Watt

1.5 kVdc

2 x 2 inches
50.8 x 50.8 x 10.2

High Isolated

VMA Series
- Single, Dual Output
- Low Ripple and Noise
- Cost Effective
- Efficiency Up to 80 %
1 Watt

1 - 6 kVdc

SIL 7 (S)
19.50 x 6.0 x 9.50
DIL 14 (D)
20.32 x 10.16 x 6.85
VMI Series (1W)
- Single and Dual Output
- 100% Safety Production Test
- 2.5mm creepage & clearance distance
- 6 kVdc I/O Isolation
1 Watt

6 kVdc

SIL7
19.50 x 9.80 x 12.00
VMH Series
- Single, Dual Output
- Low Ripple and Noise
- Cost Effective
- Efficiency Up to 82%
2 Watt

1 - 6 kVdc

SIL 7 (S)
19.50 x 6.00 x 9.50
DIL 14 (D)
20.32 x 10.16 x 6.85
VMB Series (2W)
- Single Output
- Continuous Short Circuit Protection
- Efficiency up to 69%
- Cost Effective
2 Watt

1 - 5.2 kVdc

SIL 12
32.00 x 14.00 x 8.00
VMR Series (2W)
- Single, Dual Output
- Efficiency Up to 70%
- Regulated Output Voltage
- Continuous Short Circuit Protection
2 Watt

1 - 6 kVdc

DIL 24
31.75 x 20.32 x 10.16
VMB Series (3W)
- Single Output
- Continuous Short Circuit Protection
- Efficiency up to 71%
- Cost Effective
3 Watt

1 - 5.2 kVdc

SIL 12
32.00 x 14.00 x 8.00
VMR Series (3W)
- Single, Dual Output
- Efficiency Up to 70%
- Regulated Output Voltage
- Continuous Short Circuit Protection
3 Watt

1 - 6 kVdc

DIL 24
31.75 x 20.32 x 10.16
VMI Series (3.5W)
- Single Output
- +/-20% Input Range
- 8mm creepage & clearance distance
- 5 kVdc I/O Isolation
3.5 Watt

5 kVdc

DIL 24
31.75 x 20.32 x 10.16

SMD Converter

VSE Series
- Single Output
- Transfer Molded SMD Package
- Efficiency up to 78%
- Cost Effective
1 Watt

1 kVdc

SMD 14 Package
12.7 x 11.0 x 7.0
VSA Series
- Single, Dual Output
- Transfer Molded SMD Package
- Efficiency up to 78%
- Cost Effective
1 Watt

1 kVdc

SMD 18 Package
15.24 x 11.0 x 6.5
VSV Series (1W)
- Single, Dual Output
- Transfer Molded SMD Package
- Efficiency up to 82%
- Cost Effective
1 Watt

1 kVdc

SMD 22 Package
15.24 x 11.0 x 7.3
or
15.24 x 11.0 x 8.5
VSV Series (2W)
- Single, Dual Output
- Transfer Molded SMD Package
- Efficiency up to 82%
- Cost Effective
2 Watt

3 kVdc

SMD 22 Package
15.24 x 11.0 x 8.5
VT02B Series
- Single, Dual Output
- SMD or DIL Package
- Efficiency up to 84%
- UL60950-1 certified
2 Watt

1 â€“ 3 kVdc

DIL 14
18.9 x 12.8 x 8.4
SMD 14 Package
18.9 x 12.8 x 8.4
VTW02B Series
- Single, Dual Output
- SMD or DIL Package
- Efficiency up to 83%
- UL60950-1 certified
2 Watt

1 â€“ 3 kVdc

DIL 14
18.9 x 12.8 x 8.4
SMD 14 Package
18.9 x 12.8 x 8.4
VT03B Series
- Single, Dual Output
- SMD or DIL Package
- Efficiency up to 84%
- UL60950-1 certified
3 Watt

1 â€“ 3 kVdc

DIL 14
18.9 x 12.8 x 8.4
SMD 14 Package
18.9 x 12.8 x 8.4
VTW03B Series
- Single, Dual Output
- SMD or DIL Package
- Efficiency up to 83%
- UL60950-1 certified
3 Watt

1 â€“ 3 kVdc

DIL 14
18.9 x 12.8 x 8.4
SMD 14 Package
18.9 x 12.8 x 8.4
VT03 Series
- Single, Dual Output
- UL60950-1 certified
- EMI EN 55022 Level A
- Extended Temperature Range
3 Watt

1.5 kVdc

DIL 24
31.8 x 20.3 x 10.2
SMD 24 Package
32.0 x 25.4 x 11.2
VT05 Series
- Single, Dual Output
- UL60950-1 certified
- EMI EN 55022 Level A
- Extended Temperature Range
5 Watt

1.5 kVdc

DIL 24
31.8 x 20.3 x 10.2
SMD 24 Package
32.0 x 25.4 x 11.2
VTW05 Series
- Single, Dual Output
- UL60950-1 certified
- EMI EN 55022 Level A
- Extended Temperature Range
5 Watt

1.5 kVdc

DIL 24
31.8 x 20.3 x 10.2
SMD 24 Package
32.0 x 25.4 x 11.2
VT08 Series
- Single, Dual Output
- UL60950-1 certified
- EMI EN 55022 Level A
- Remote On/Off
8 Watt

1.5 kVdc

DIL 24
31.8 x 20.3 x 10.2
SMD 24 Package
32.0 x 25.4 x 11.2
VTW08 Series
- Single, Dual Output
- UL60950-1 certified
- EMI EN 55022 Level A
- 110Vdc Railway Input
8 Watt

1.5 kVdc

DIL 24
31.8 x 20.3 x 10.2
SMD 24 Package
32.0 x 25.4 x 11.2
VT12 Series
- Single, Dual Output
- Efficiency up to 89%
- EMI EN 55022 Level A
- Remote On/Off
12 Watt

1.5 kVdc

DIL 24
31.8 x 20.3 x 10.2
SMD 24 Package
32.0 x 25.4 x 11.2
VTW12 Series
- Single, Dual Output
- Efficiency up to 89%
- EMI EN 55022 Level A
- Remote On/Off
12 Watt

1.5 kVdc

DIL 24
31.8 x 20.3 x 10.2
SMD 24 Package
32.0 x 25.4 x 11.2

DC/DC Devices

UVTW15 Series
- Single & Dual Output
- Screw Terminals
- Efficiency up to 87%
- UL60950-1 certified
- Remote ON/OFF
15 Watt

4 : 1

U-Channel
DVTW15 Series
- Single & Dual Output
- Screw Terminals
- Efficiency up to 86%
- UL60950-1 certified
- Remote ON/OFF
15 Watt

4 : 1

DIN-Rail
UVT20 Series
- Single & Dual Output
- Screw Terminals
- Efficiency up to 88%
- UL60950-1 certified
- Remote ON/OFF
20 Watt

2 : 1

U-Channel
DVT20 Series
- Single & Dual Output
- Screw Terminals
- Efficiency up to 87%
- UL60950-1 certified
- Remote ON/OFF
20 Watt

2 : 1

DIN-Rail
UVTW20 Series
- Single & Dual Output
- Screw Terminals
- Efficiency up to 88%
- UL60950-1 certified
- Remote ON/OFF
20 Watt

4 : 1

U-Channel
DVTW20 Series
- Single & Dual Output
- Screw Terminals
- Efficiency up to 87%
- UL60950-1 certified
- Remote ON/OFF
20 Watt

4 : 1

DIN-Rail
UVT30 Series
- Single & Dual Output
- Screw Terminals
- Efficiency up to 89%
- UL60950-1 certified
- Remote ON/OFF
30 Watt

2 : 1

U-Channel
DVT30 Series
- Single & Dual Output
- Screw Terminals
- Efficiency up to 88%
- UL60950-1 certified
- Remote ON/OFF
30 Watt

2 : 1

DIN-Rail
UVTW30 Series
- Single & Dual Output
- Screw Terminals
- Efficiency up to 87%
- UL60950-1 certified
- Remote ON/OFF
30 Watt

4 : 1

U-Channel
DVTW30 Series
- Single & Dual Output
- Screw Terminals
- Efficiency up to 86%
- UL60950-1 certified
- Remote ON/OFF
30 Watt

4 : 1

DIN-Rail
UVT40 Series
- Single, Dual & Triple Output
- Screw Terminals
- Efficiency up to 89%
- Over Load Protection
- Remote ON/OFF
40 Watt

2 : 1

U-Channel
DVT40 Series
- Single, Dual & Triple Output
- Screw Terminals
- Efficiency up to 89%
- Over Load Protection
- Remote ON/OFF
40 Watt

2 : 1

DIN-Rail
UVTW40 Series
- Single & Dual Output
- Screw Terminals
- Efficiency up to 87%
- Over Load Protection
- Remote ON/OFF
40 Watt

4 : 1

U-Channel
DVTW40 Series
- Single & Dual Output
- Screw Terminals
- Efficiency up to 87%
- Over Load Protection
- Remote ON/OFF
40 Watt

4 : 1

DIN-Rail
UVT60 Series
- Single Output
- Screw Terminals
- Efficiency up to 89%
- Over Load Protection
- Remote ON/OFF
60 Watt

2 : 1

U-Channel
DVT60 Series
- Single Output
- Screw Terminals
- Efficiency up to 89%
- Over Load Protection
- Remote ON/OFF
60 Watt

2 : 1

DIN-Rail

LED Power

VLD Series (300mA)
- Constant Current Output
- Output Power up to 8W
- PWM/Digital/Analog Dimming
- Open and Short LED Protection
7V to 30 Vdc

up to 28V
(2V to 28V)

DIL 14
20.32 x 10.16 x 6.88
VLD Series (350mA)
- Constant Current Output
- Output Power up to 8W
- PWM/Digital/Analog Dimming
- Open and Short LED Protection
7V to 30 Vdc

up to 28V
(2V to 28V)

DIL 14
20.32 x 10.16 x 6.88
VLD Series (500mA)
- Constant Current Output
- Output Power up to 14W
- PWM/Digital/Analog Dimming
- Open and Short LED Protection
7V to 30 Vdc

up to 28V
(2V to 28V)

DIL 16
23.40 x 14.00 x 10.16
VLD Series (600mA)
- Constant Current Output
- Output Power up to 17W
- PWM/Digital/Analog Dimming
- Open and Short LED Protection
7V to 30 Vdc

up to 28V
(2V to 28V)

DIL 16
23.40 x 14.00 x 10.16
VLD Series (700mA)
- Constant Current Output
- Output Power up to 20W
- PWM/Digital/Analog Dimming
- Open and Short LED Protection
7V to 30 Vdc

up to 28V
(2V to 28V)

DIL 16
23.40 x 14.00 x 10.16
VLD Series (1000mA)
- Constant Current Output
- Output Power up to 24W
- PWM/Digital/Analog Dimming
- Open and Short LED Protection
7V to 30 Vdc

up to 28V
(2V to 28V)

DIL 16
23.40 x 14.00 x 10.16
